It is widely used in car rental, fleet management and logistics.
KM-02 is compact and lightweight, which easy for hidden installion.
It supports remote power cutoff to protect your vehicle at all times.
Product Description

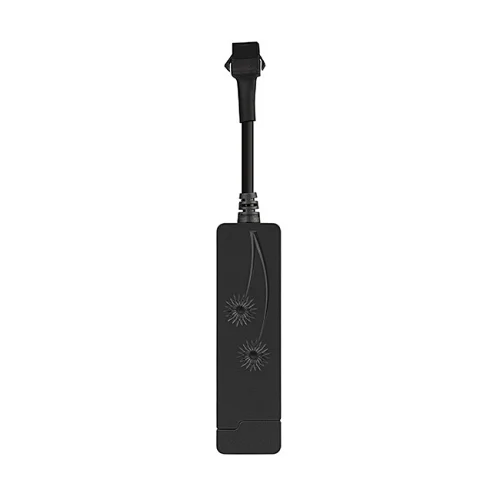

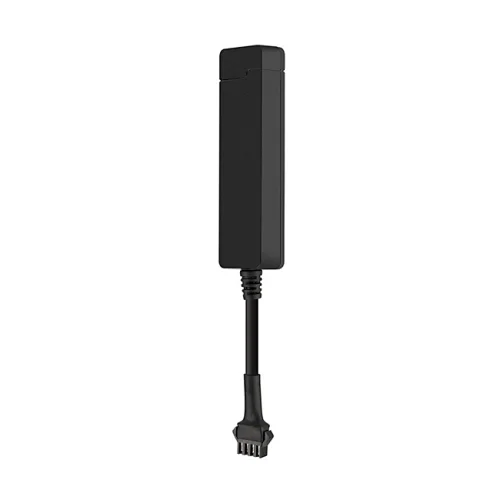

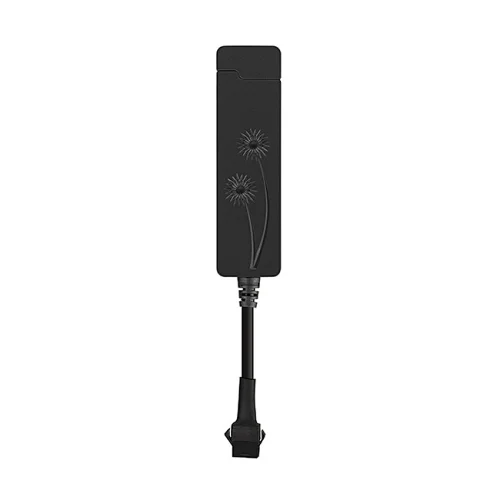

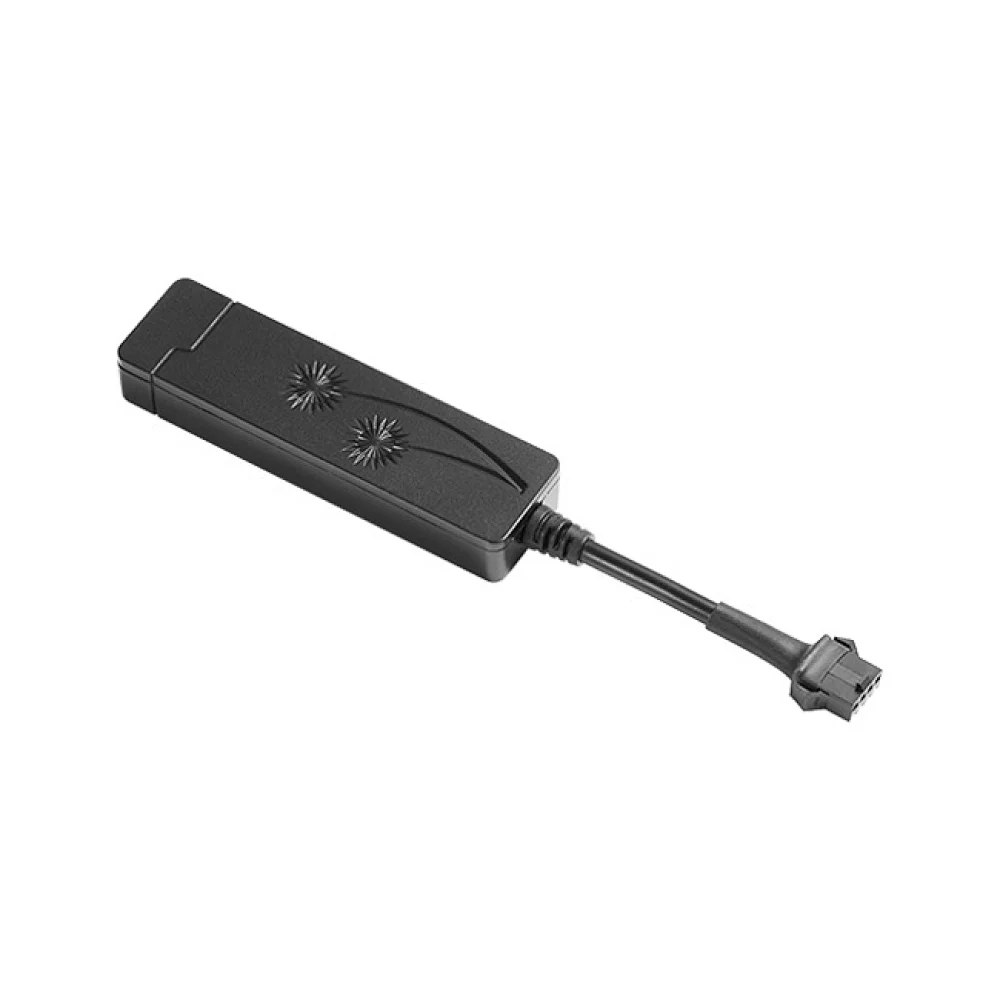

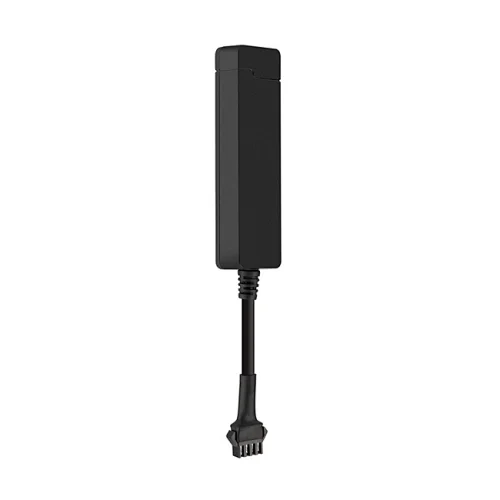

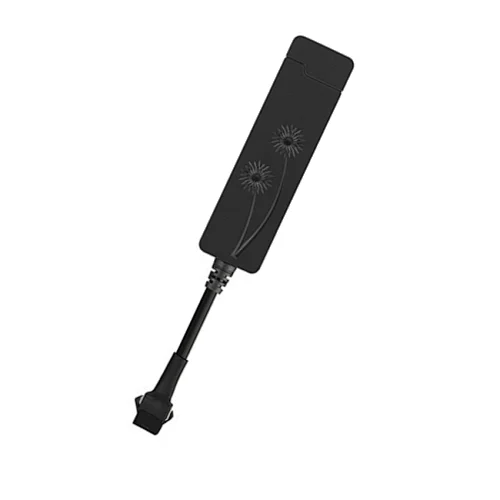

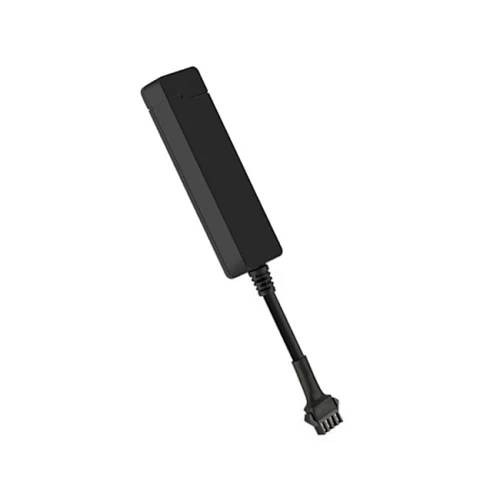

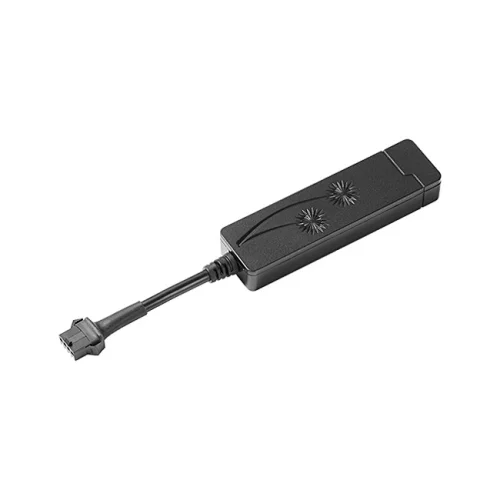

Introducing the BSJ Technology small GPS tracker, the perfect solution for those looking for a compact and reliable tracking device for their car. This small GPS tracker is designed to provide accurate real-time tracking of your vehicle's location, speed, and other important data. With advanced tracking capabilities, this device can be easily concealed in your car, making it virtually undetectable to anyone who may be looking for it.
The BSJ Technology small GPS tracker is made with high-quality materials that ensure its durability and longevity. Its compact size allows for easy installation, and its powerful battery ensures that it will last for extended periods of time without needing to be recharged. With its advanced tracking technology, you can rest assured that your car is safe and secure at all times.
This small GPS tracker is also versatile and can be used for a variety of tracking applications beyond cars, including personal items, pets, and more. Its small size and discreet design make it ideal for tracking anything that requires a covert tracking solution.
Don't settle for a bulky and cumbersome tracking device. Choose the BSJ Technology small GPS tracker for a reliable and compact solution that provides advanced tracking capabilities.
Product Features
![]() | Real-time TrackingUpload the longitude and latitude information according to the time interval | ![]() | Upload Blind DataThe device will store location data in the network blind area, and upload this data when the GSM signal is good. |
![]() | Upload Inflection DataWhen the direction angle of the device changes by more than a certain angle, one location data will be uploaded immediately to optimize the trajectory. | ![]() | Power Off AlarmTurn on the backup battery, when the vehicle voltage is lower than 5v, the device uploads an alarm to the server |
![]() | Remote Upgrade The device supports updating firmware versions remotely. | ![]() | Over-speed Alarm Set the maximum speed limit value through the platform or SMS command. When the GPS speed exceeds the set value, the device will upload an alarm to the server |
![]() | Basic Driving Behavior MonitoringSupport uploading rapid acceleration alarm, rapid deceleration alarm, sharp turns alarm, collision alarm, and vibration alarm to the server | ![]() | SMS QuerySend “WHERE#” through SMS or platform to get latitude and longitude, current time, speed, ACC status, and Google Maps link. |
![]() | ACC On/Off StatusUploaded location data with the ACC on/off status each time | ![]() | Fuel Cut OffCut off/supply fuel remotely through server or SMS |
Product Specification
GPS | ||
GPS Channels | 22 Channels For Tracking, 66 Channels For Acquisition | |
GPS Frequency | 1575.42MHz | |
GPS Ceramic Antenna | 18*18*2MM | |
Tracking Sensitivity | -160dBm | |
Acquisition Sensitivity | -147dBm |
GSM | ||
Communication System | GSM | |
Band | 850/900/1800/1900MHz | |
GPRS | Class 12, TCP/IP | |
Maximum Output Power | GSM850/GSM900:32.5±2dBm, GSM1800/GSM1900:30±2dBm | |
Receiving Sensitivity | ClassII RBER2%(-103dBm) | |
Communication Antenna | Built-in FPC Antenna 49.04*6.11*0.12(±0.2MM) |
Other | ||
Antenna | Built-in GPS ceramic antenna, built-in communication FPC antenna | |
LED Indicator | GPS: Yellow; GSM: Red | |
Standby Battery | About 10min (3.7V 55mAh Soft Pack Lithium Battery) | |
Working Voltage | DC 9V - 36 V | |
Working Current | 25mA@12V(Static Current 10mA) | |
Dimension | 83mm*23mm*12.5mm | |
Power Cable | 4 Pin (Power+, GND, ACC, Fuel) | |
Motion Sensor | DA213 |
The BSJ Technology small GPS tracker is a versatile and reliable tracking device that can be used in a variety of applications. One of its most popular uses is as a small GPS for cars. With its compact size, this device can be easily installed in any car, making it an ideal solution for vehicle tracking.
Imagine being able to track the location of your car in real-time, no matter where you are. With the BSJ Technology small GPS tracker, you can do just that. Whether you want to keep an eye on your teenage driver, track the location of a company vehicle, or simply have peace of mind knowing where your car is at all times, this device is the perfect solution.
But the uses of the BSJ Technology small GPS tracker don't stop there. Its small size and discreet design make it an ideal tracking device for a wide range of applications, including tracking personal items such as backpacks or luggage, pets, or even elderly family members who may need extra assistance.
Whether you need a small GPS tracker for cars or any other small tracking devices, the BSJ Technology small GPS tracker is the reliable and compact solution you've been looking for.
