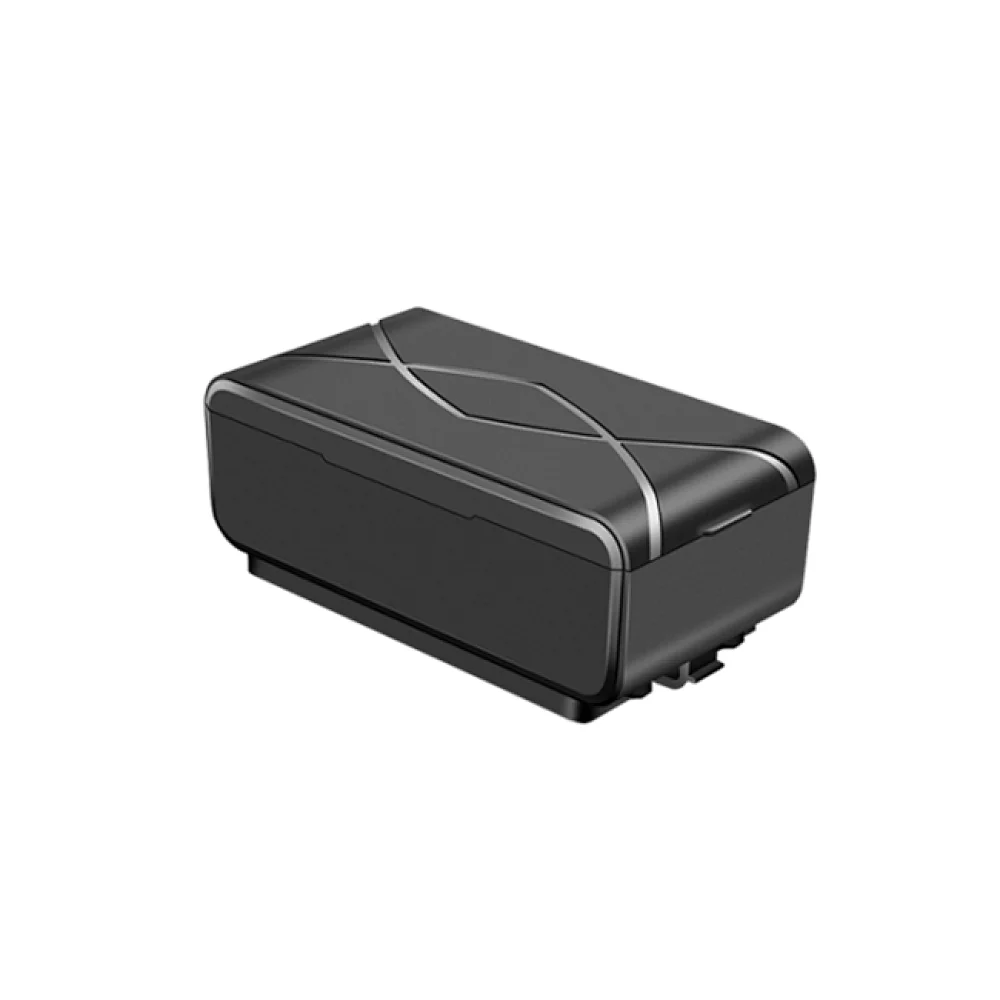

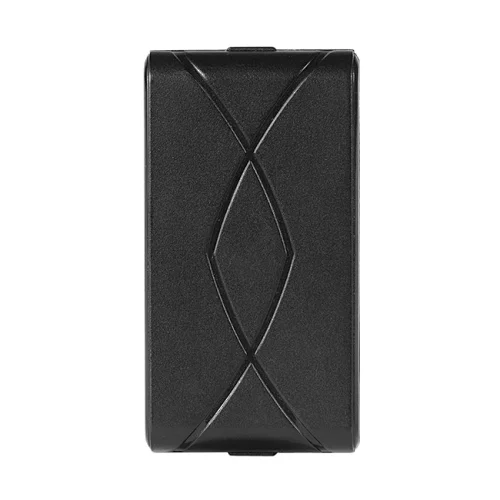

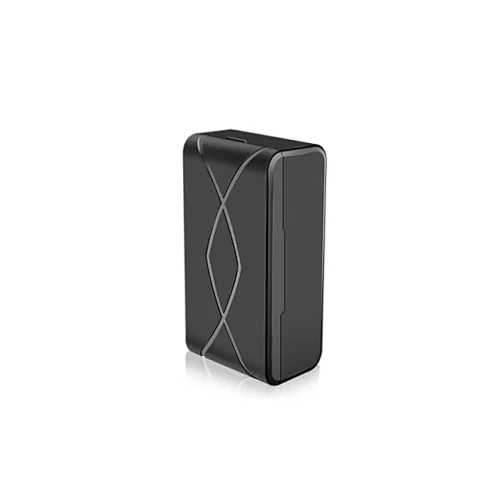

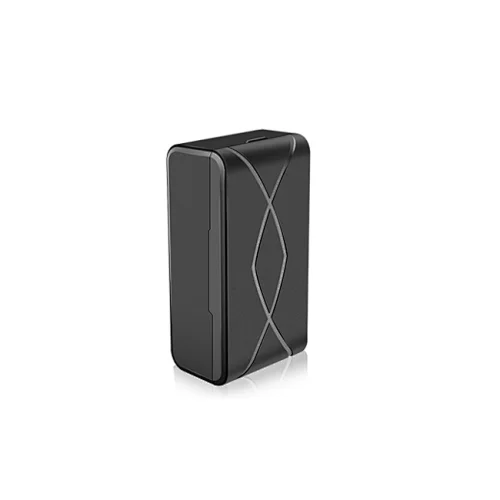

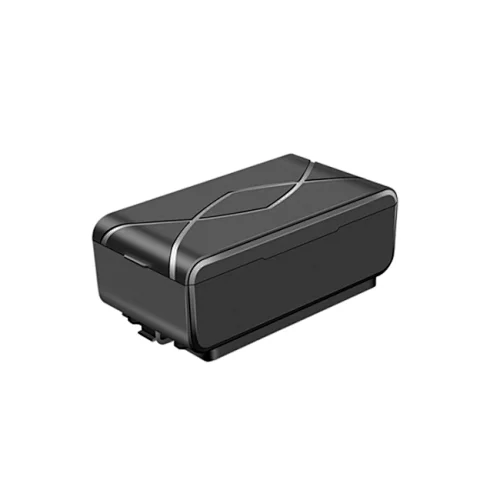

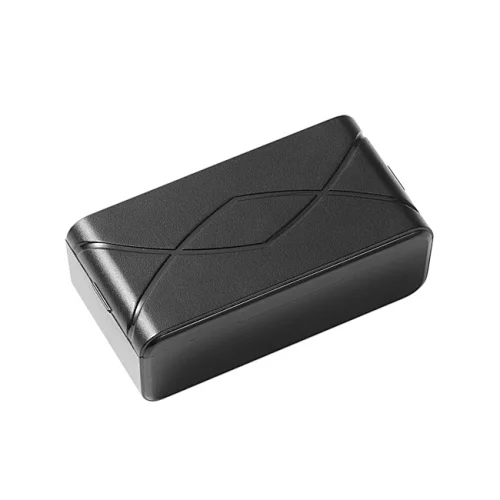

2G 3-Year Long Standby Asset Tracker
BSJ-A5C-8
1
A5C-8 is a 2G Asset Tracker with a 4500mAh lithium manganese battery.

Mainly used for asset tracking, car rental, and hidden installation.

Different working modes for various application scenarios.
Quantity

Product Description

The BSJ Technology asset location tracking and management system is a comprehensive solution for businesses looking to track, manage, and protect their valuable assets. Our advanced technology allows for real-time visibility of your assets, helping you optimize your operations and reduce the risk of asset loss or theft.

Our asset tracking services provide easy management of your assets, allowing you to monitor and track their location, status, and condition. With custom alerts and notifications, you can receive real-time updates on asset movement, allowing you to respond quickly to any potential issues.

Our asset management tracking system also offers comprehensive reporting and analytics, giving you valuable insights into asset utilization, maintenance, and performance. With this data, you can make informed decisions to optimize your asset usage, reduce downtime, and maximize your profits.

At BSJ Technology, we understand the importance of asset location tracking and management. That's why our system is designed to be user-friendly and reliable, providing you with the tools you need to stay in control of your assets. Whether you're a small business owner or managing a large enterprise, our asset tracking services can help you streamline your operations and improve your bottom line.

In summary, the BSJ Technology asset location tracking and management system is an essential tool for businesses looking to optimize their asset usage, reduce risks, and maximize profits. With our reliable and comprehensive tracking services, you can stay ahead of the curve and take control of your assets.

Product Features

Alarm Clock Mode

Can set wake-up time 4 times each day, would wake-up in the setting time automatically and after the data sent will get into sleep mode

Super Low Power Consumption

During dormancy, power consumption is less than 3.5uA.

Multiple Working Modes

Timing mode; Alarm mode; Week mode, suitable for different usage scenarios

3-year Long Standby

One location a day, it can be used for three years

Battery

Built-in 4500mAh lithium manganese battery


Timing Mode

Sent the location data at a fixed time

Strong Magnetic

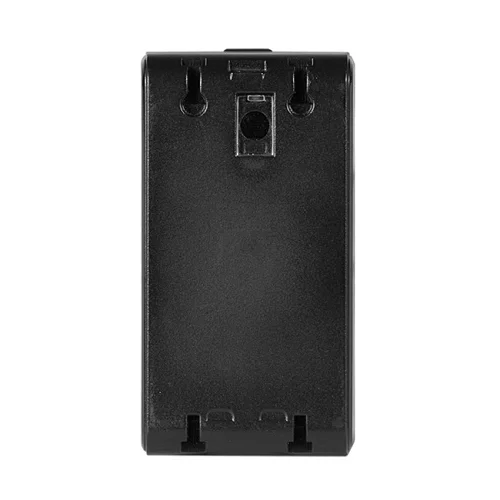

Built-in multiple magnetic beads, easy-to-install hidden

Light Alarm

Demolition Alarm switch on, The terminal will report a light sensor alarm from invisible to visible light.



Specification


GPS
GPS Channels22 Channels For Tracking, 66 Channels For Acquisition
GPS Frequency1575.42MHz

GPS Ceramic Antenna

25*25*4MM
Tracking Sensitivity-160dBm
Acquisition Sensitivity-147dBm


GSM
Communication SystemGSM
Band850/900/1800/1900MHz

GPRS

Class 12, TCP/IP
Maximum Output PowerGSM850/GSM900:32.5±2dBm, GSM1800/GSM1900:30±2dBm
Receiving SensitivityClassII RBER2%(-103dBm)

Communication Antenna

Built-in FPC Antenna 37.70*14.80*0.12mm(±0.2MM)

Other
AntennaBuilt-in GPS ceramic antenna, built-in communication FPC antenna
LED IndicatorGPS: Yellow; GSM: Red
Battery Capacity4500mAh (1500mAh*3)
Working VoltageDC 3V

Standby Current

<3.5uA

Dimension

L77*W41*H27mm

Working Modes

Alarm clock mode; Timing mode; Week mode

Application Description

The BSJ Technology asset location tracking and management system is perfect for businesses that rely on assets to operate. Whether you're in logistics, construction, healthcare, or any other industry, our system can help you track and manage your assets with ease.

For example, in logistics, our asset tracking services can help you monitor the movement of your inventory, ensuring that it arrives at its destination on time and in good condition. In construction, our asset management tracking system can help you keep track of your equipment, reducing the risk of theft or loss.

In healthcare, our asset location tracking system can help you keep track of expensive medical equipment, ensuring that it's always available when needed. Our system can also help you track medication inventory, ensuring that you never run out of critical supplies.

Overall, the BSJ Technology asset location tracking and management system is an essential tool for any business that relies on assets. With our comprehensive tracking services, you can optimize your operations, reduce risks, and maximize your profits.
