Product Description

The BSJ Technology GPS asset tracker is the perfect solution for businesses looking to efficiently manage their assets. With advanced GPS tracking technology, this device allows for accurate real-time tracking of assets, making it easier than ever to monitor their location and status. This GPS asset tracker can be easily attached to assets such as vehicles, containers, and equipment, providing businesses with complete visibility over their assets.

Combined with professional asset tracking services, the BSJ Technology GPS asset tracker enables businesses to optimize asset management tracking. By streamlining operations and reducing costs associated with lost or stolen assets, businesses can improve their bottom line and enhance customer satisfaction.

In addition to asset management tracking, the BSJ Technology GPS asset tracker is also a versatile device that can be used in a variety of industries, including transportation, logistics, and construction. With its durable and weather-resistant design, this device is built to withstand harsh environments, making it an ideal solution for outdoor applications.

Investing in the BSJ Technology GPS asset tracker and professional asset tracking services is a smart choice for any business looking to improve asset management and streamline operations.

Product Features



	Real-time Tracking Upload the longitude and latitude information according to the time interval		Upload Blind Data The device will store location data in the network blind area, and upload this data when the GSM signal is good.
	Multiple Working Modes Tracking mode; Timing mode; Alarm wake-up mode; suitable for different usage scenarios		Listen-in Dial the SIM card number in the device from the mobile phone, you can directly listen to the sounds around the car
	Remote Upgrade The device supports updating firmware versions remotely.		Over-speed Alarm Set the maximum speed limit value through the platform or SMS command. When the GPS speed exceeds the set value, the device will upload an alarm to the server
	Rechargeable Battery Built-in 7500mAh rechargeable lithium battery		SMS Query Send “WHERE#” through SMS or platform to get latitude and longitude, current time, speed, ACC status, and Google Maps link.

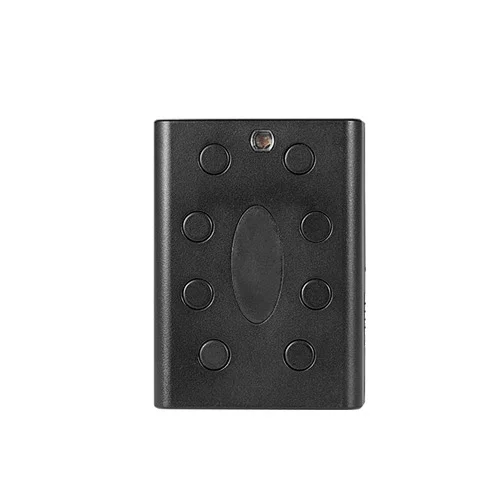

	Strong Magnetic Built-in multiple magnetic beads, easy-to-install hidden		Light Alarm Demolition Alarm switch on, The terminal will report a light sensor alarm from invisible to visible light



Product Specification



GPS
	GPS Channels	22 Channels For Tracking, 66 Channels For Acquisition
	GPS Frequency	Glonass:1602MHz; GPS:1575.42MHz
	GPS Ceramic Antenna	25*25*4MM
	Tracking Sensitivity	-165dBm
	Acquisition Sensitivity	-148dBm




GSM
	Communication System	GSM
	Band	850/900/1800/1900MHz
	GPRS	Class 12， TCP/IP
	Maximum Output Power	GSM850/GSM900: 32.5±2dBm; GSM1800/GSM1900: 30±2dBm
	Receiving Sensitivity	Class|| RBER2%(-103dBm)
	Communication Antenna	Built-in FPC Antenna 54.40*6.40*0.12mm(±0.2MM)



Other
	Antenna	Built-in GPS ceramic antenna, built-in communication FPC antenna
	LED Indicator	GPS: Yellow； GSM: Red
	Charging Indicator	Red: Charging Green: Fully charged
	Battery Capacity	7500mAh (2500mAh*3)
	Working Voltage	DC 5V
	Working Current	Motion Model: 46mA@4V The static current: 7.5mA@4V Power saving mode: 70uA@4V
	Standby Current	<3.5uA
	Dimension	86mm*62mm*30mm
	Working Modes	Real-time tracking mode Smart power-saving mode Deep power saving mode
	Motion Sensor	DA213




Application Description



The BSJ Technology GPS asset tracker is a powerful tool for businesses across a range of industries. In the transportation industry, this device can be used to track the location and status of vehicles, trailers, and other assets, allowing for efficient asset management tracking and improved customer satisfaction.

In the logistics industry, the GPS asset tracker can be used to track containers and other equipment, providing businesses with complete visibility over their assets and enabling them to optimize their supply chain operations.

In the construction industry, the GPS asset tracker can be used to monitor the location and usage of equipment, reducing the risk of theft and improving asset management tracking. This device can also be used to track the location of construction materials, ensuring that they are delivered to the right location at the right time.

With professional asset tracking services, businesses can take full advantage of the BSJ Technology GPS asset tracker, optimizing their asset management tracking and improving their bottom line. From transportation and logistics to construction and beyond, this device is the ideal solution for businesses looking to efficiently manage their assets.
