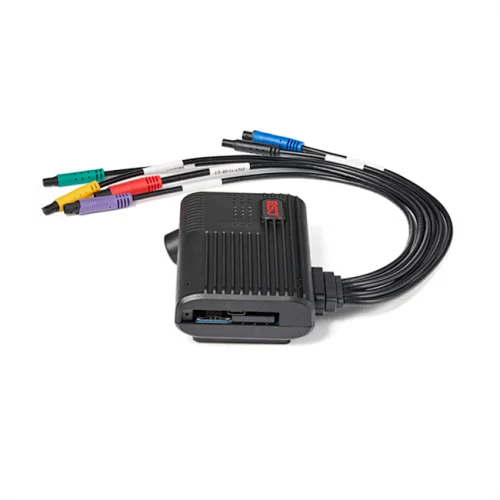

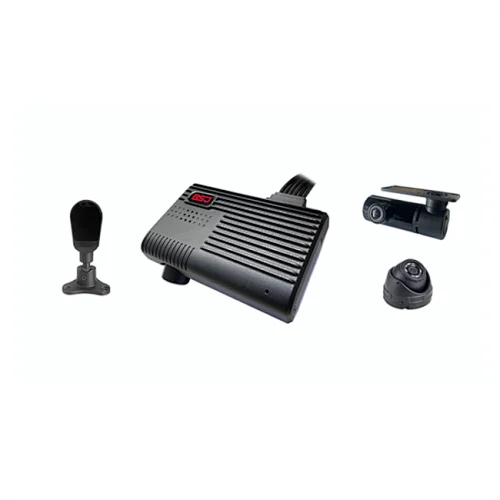

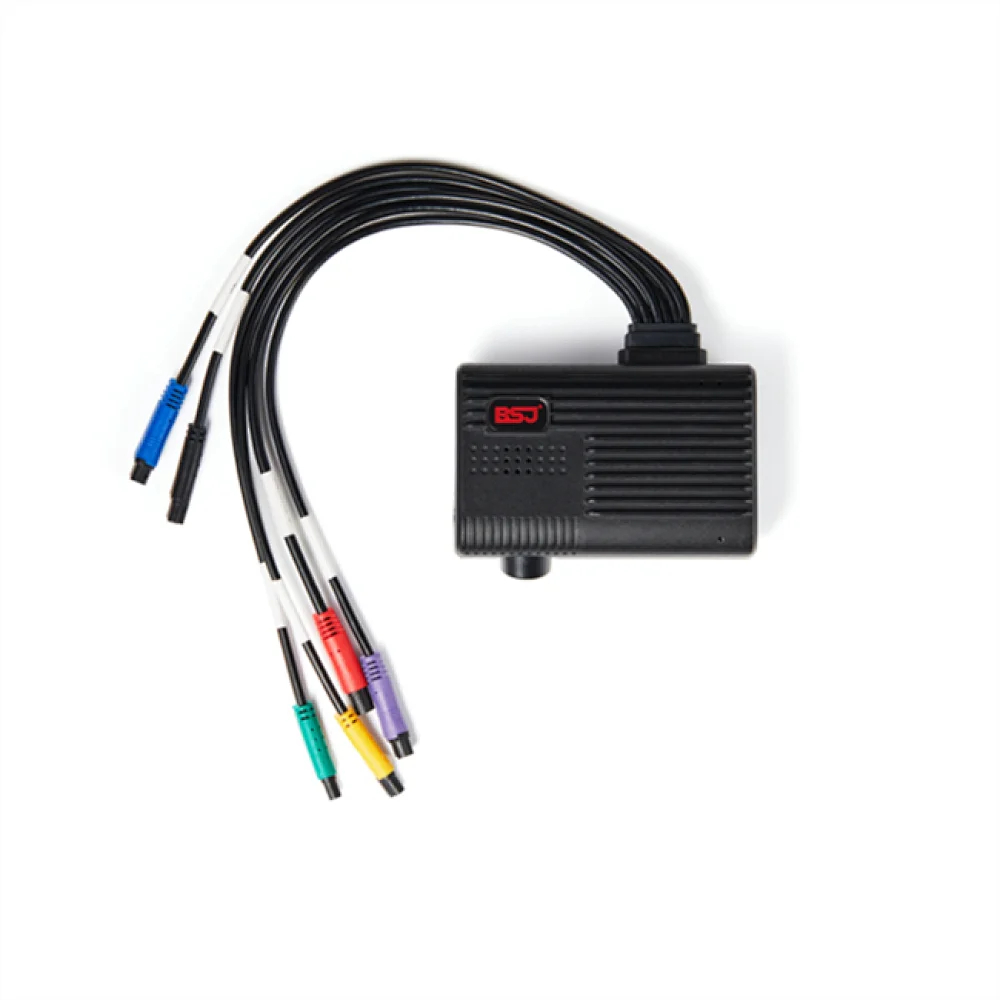

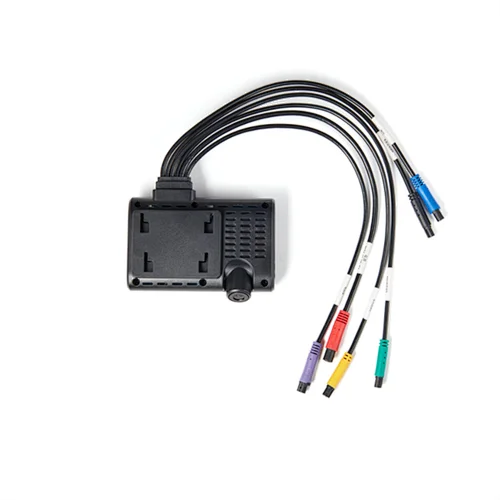

4G Intelligent Car Driving Recorder
BSJ-GH03T
GH03T is a cost-effective intelligent car recorder that integrates positioning, communication, and vehicle remote monitoring.

Built-in GPS positioning module, 4G communication module, WIFI module, audio, and video coding and decoding SOC.

It supports 4-way video and 2-way audio and dual TF card, video storage function.
Quantity

Product Features



HD Video

1-channel 1080P and 3-channel 720P HD video
Loop video recording, Video Playback

Driving Behavior Monitoring

Advanced Driver Assistance (ADAS) + Driver Behavior Monitoring (DMS)

Real-time Tracking

Upload the longitude and latitude information according to the time interval

Upload Data In Blind Area

The device will store location data in the network blind area, and upload this data when the GSM signal is good.

Upload Inflection Data

When the direction angle of the device changes by more than a certain angle, one location data will be uploaded immediately to optimize the trajectory.

Power Off Alarm

Turn on the backup battery, when the vehicle voltage is lower than 5v, the device uploads an alarm to the server
Remote Upgrade

The device supports updating firmware versions remotely.
Over-speed Alarm
Set the maximum speed limit value through the platform or SMS command. When the GPS speed exceeds the set value, the device will upload an alarm to the server

ACC On/Off Status

Uploaded location data with the ACC on/off status each time

SOS Alarm

In case of emergency, the SOS alarm can be triggered and reported to the platform through the SOS button

Voice intercom/Listen-in

Support two-way communication and real-tine voice monitoring of the car

Video lock

Auto-lock video in case of collision and other emergencies. Emergency video is automatically uploaded to FTP server.



Specification



Other
DDR1Gb DDR4
Memory8G EMMC
StorageDual TF card slot, Class10 high-speed card; 8~128GB
AudioSupport recording, voice broadcast, intercom

Working Current

45mA@12V (Static Current 6mA)

Sensor

3-axis G-sensor
Camera

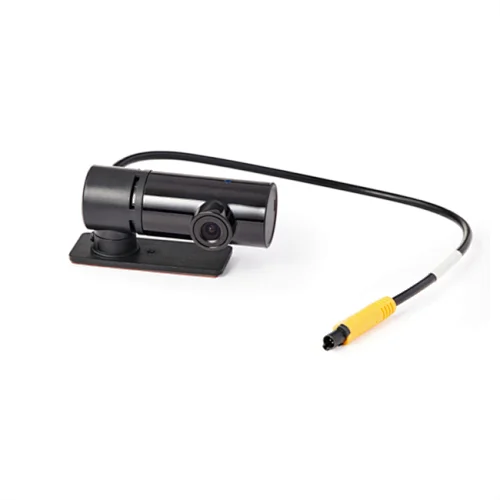

ADAS Camera (Standard configuration): focal length 3.6/4 glass/
aperture F2.0/60°H/ 1080P day and night full color

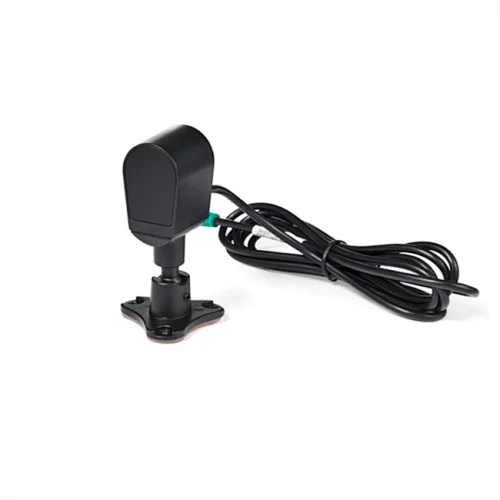

DMS camera (optional): 6MM focal length/4 glass/FNO 2.0/45°H/
720P black and white

Passenger camera(optional): 2.8MM focal length/4 glass/FNO 2.0/90°H/
720P double-pass filter, automatic color to black


Image Format

PNG

Video format

MP4

Coding


Video encoding H.264

Audio coding PCM


Video quality

15 fps@2Mbps main stream; 15fps@512Kbps sub-stream

Communication network

Support 4G network (Built-in antenna)
Band: FDD: B1/3/5/8 ; GSM: 900/1800MHz

WIFI

Built-in antenna, 2.4GHz

Working voltage

DC10V-36V

Working current

0.42A@12V (no load); 0.24A@24V (no load)
