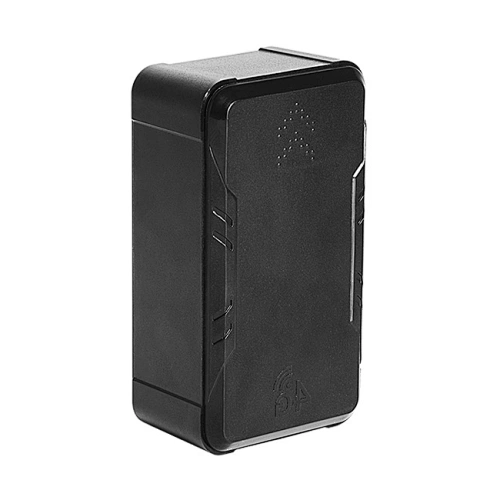

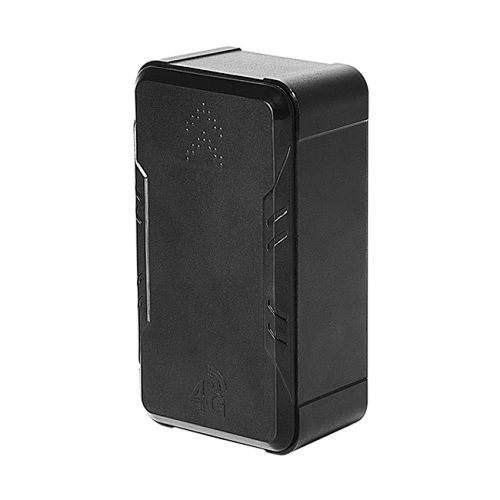

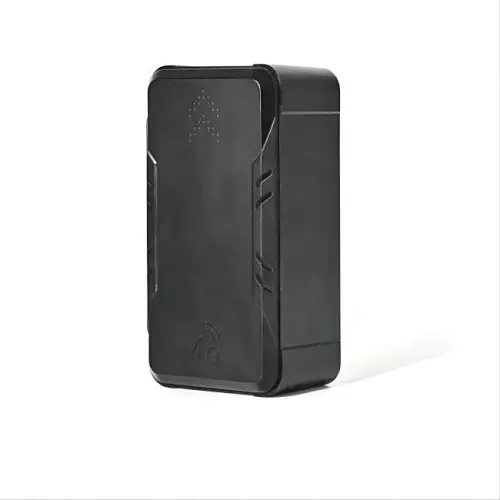

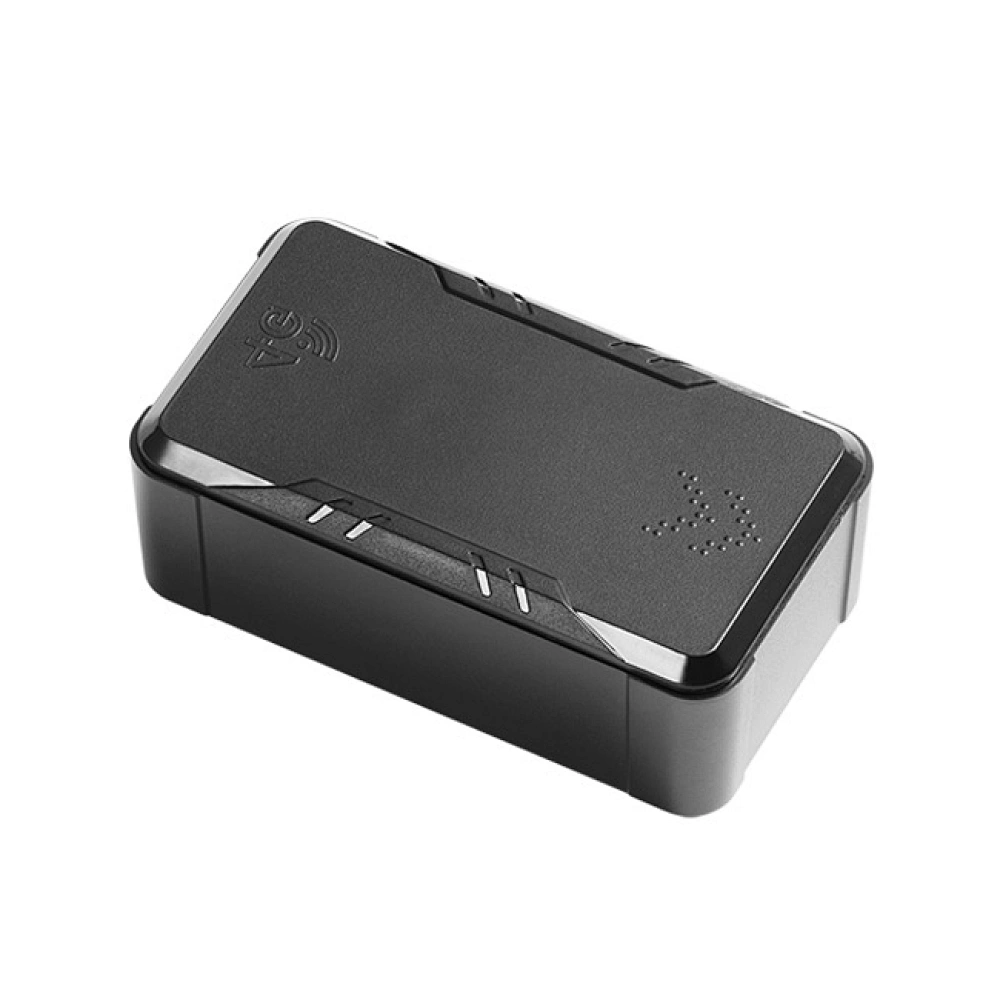

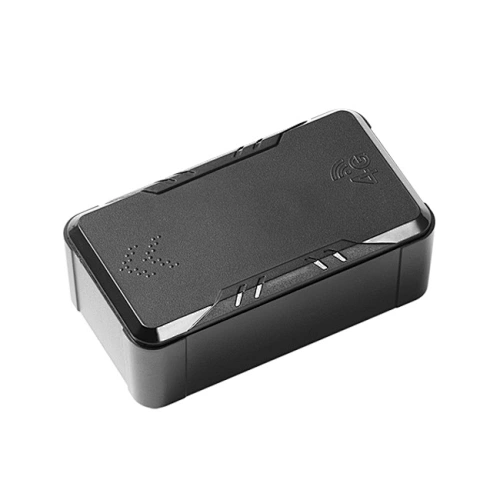

4G CAT.1 Lont Standby Asset Tracker AG01W
BSJ-AG01W
AG01W is a 4G CAT.1 Asset Tracker with 4500mAh lithium manganese battery.

Mainly use for asset tracking, car rental, hidden installation.

Different working modes for various application scenarios.
Quantity

Product Features

Alarm Clock Mode

Can set wake-up time 4 times each day, would wake-up in the setting time automatically and after the data sent will get into sleep mode

Super Low Power Consumption

During dormancy, power consumption is less than 3.5uA.

Multiple Working Modes

Timing mode; Alarm mode; Week mode, suitable for different usage scenarios

3-year Long Standby

One location a day, it can be used for three years

Battery

Built-in 4500mAh lithium manganese battery


Timing Mode

Sent the location data at a fixed time

Strong Magnetic

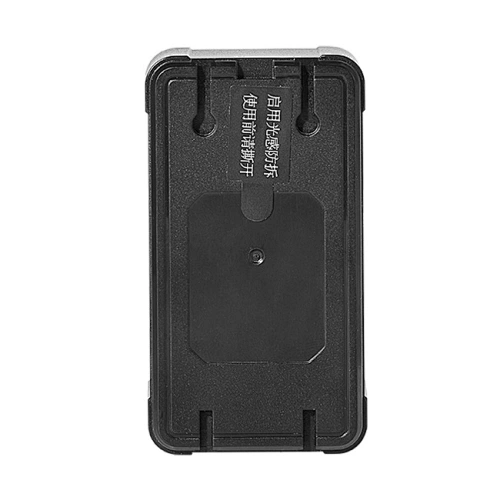

Built-in multiple magnetic beads, easy to install hidden

Light Alarm

Demolition Alarm switch on, The terminal will report a light sensor alarm from invisible to visible light.



Specification


GPS
GPS Channels22 Channels For Tracking, 66 Channels For Acquisition
GPS FrequencyGPS Frequency: 1575.42±2MHz;BD Frequency: 1561.098±2MHz

GPS Ceramic Antenna

25*25*4MM
Tracking Sensitivity-165dBm
Acquisition Sensitivity-148dBm


GSM
Communication SystemTDD-LTE/FDD-LTE/GSM
BandGSM:900/1800MHz
TDD-LTE:B34、B38、B39、B40、B41
FDD-LTE:B1、B3、B5、B8
Maximum Output PowerGSM900 Class433±2dBm,GSM1800 Class130±2dBm
LTE FDD: 23±2dBm, LTE TDD: 23±2dBm
Receiving SensitivityGSM: (-109dBm);LTE FDD: (-98dBm);LTE TDD:  (-98dBm)

Communication Antenna

Built-in FPC Antenna 38.40*13.80*0.12mm(±0.2MM)

Other
AntennaBuilt-in GPS ceramic antenna, built-in communication FPC antenna
LED IndicatorGPS: Yellow;GSM: Red
Battery Capacity4500mAh (1500mAh*3)
Working VoltageDC 3V

Standby Current

<3.5uA

Dimension

L79mm*W44mm*H30mm

Working Modes

Alarm clock mode; Timing mode; Week mode
